Sensor Panel Light Series
- Bright & Ultra efficient:140LM/W
- Inbuilt Motion&Daylight Sensor
- Detection Area: 3-5.5 Metres

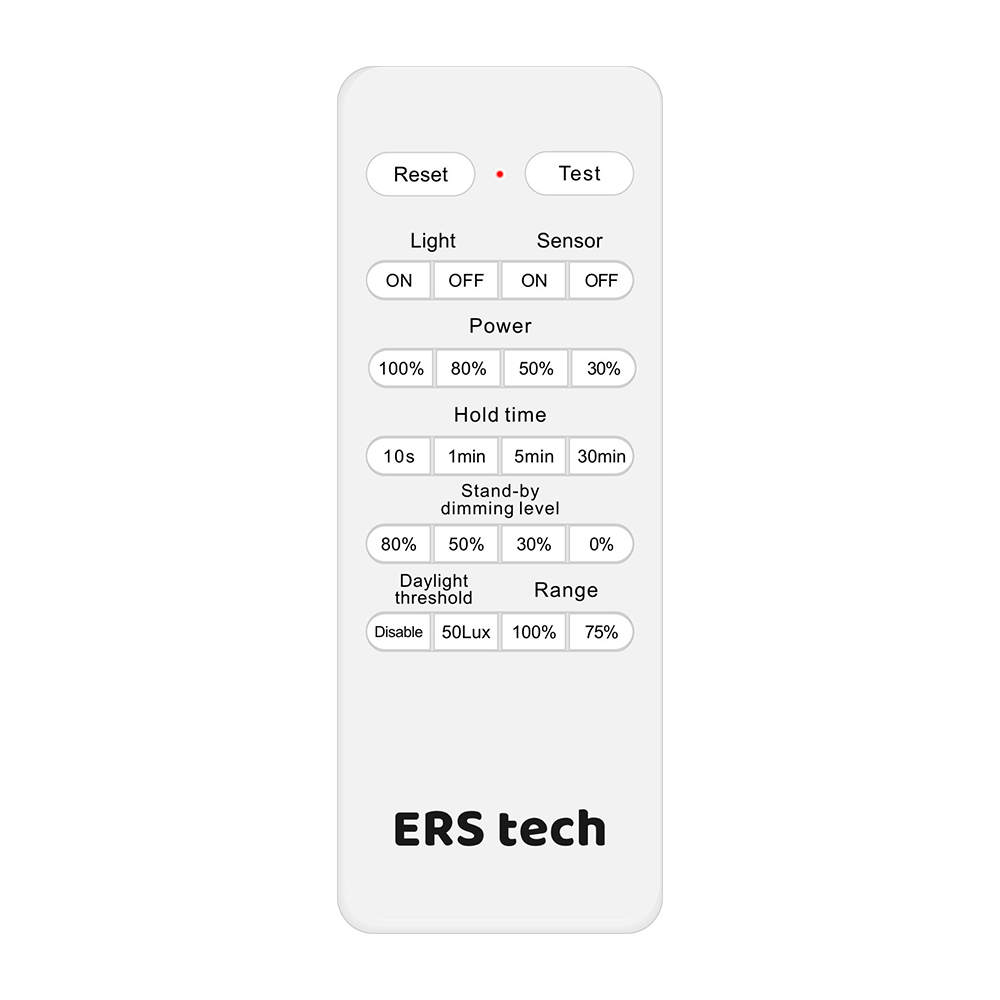

- Coming with remote controller
- 3 Years Warranty
| Key Features | ||
| VOLTAGE | 220-240V, 50/60Hz | |
| LIGHT TYPE | Back-lit panel | |
| CCT | 2700-6500K | |
| CRI | Ra>80 | |
| PF | >0.9 | |
| LED CHIPS | SMD 2835 | |
| DRIVER | ERS Driver | |
| SENSOR | Daylight&Microwave Motion Sensor | |
| MATERIALS | Aluminum frame+PS diffuser | |
| CABLE | 1.2 Metres+AU plug | |
| Model | Size (mm) | Power | LCP | Lumens | IES | Datasheet | Installation Instruction | Certifications |
| ERS-P16W30120-A1 | 295*1195*30 | 16W | 15.83W | 2240LM |  |  | | |
| ERS-P18W30120-A1 | 295*1195*30 | 18W | 17.83W | 2520LM | | | | |
| ERS-P24W30120-A1 | 295*1195*30 | 24W | 22.74W | 3360LM | | | | |
| ERS-P12W3060-A1 | 295*595*30 | 12W | 11.1W | 1680LM | | | | |
| ERS-P16W6060-A1 | 595*595*30 | 16W | 15.73W | 2240LM | | | | |
| ERS-P18W6060-A1 | 595*595*30 | 18W | 17.73W | 2520LM | | | | |
| ERS-P24W6060-A1 | 595*595*30 | 24W | 23.57W | 3360LM | | | | |
